In this blog, we’ll discuss how users of Edge Impulse and Nordic can actuate and stream classification results over BLE using Nordic’s UART Service (NUS). This makes it easy to integrate embedded machine learning into your next generation IoT applications. Seamless integration with nRF Cloud is also possible since nRF Cloud has native support for a BLE terminal.
We’ve extended the Edge Impulse example functionality already available for the nRF52840 DK and nRF5340 DK by adding the abilities to actuate and stream classification outputs. The extended example is available for download here, and offers a uniform experience on both hardware platforms.
Read the Using nRF Toolbox sectionUsing nRF Toolbox

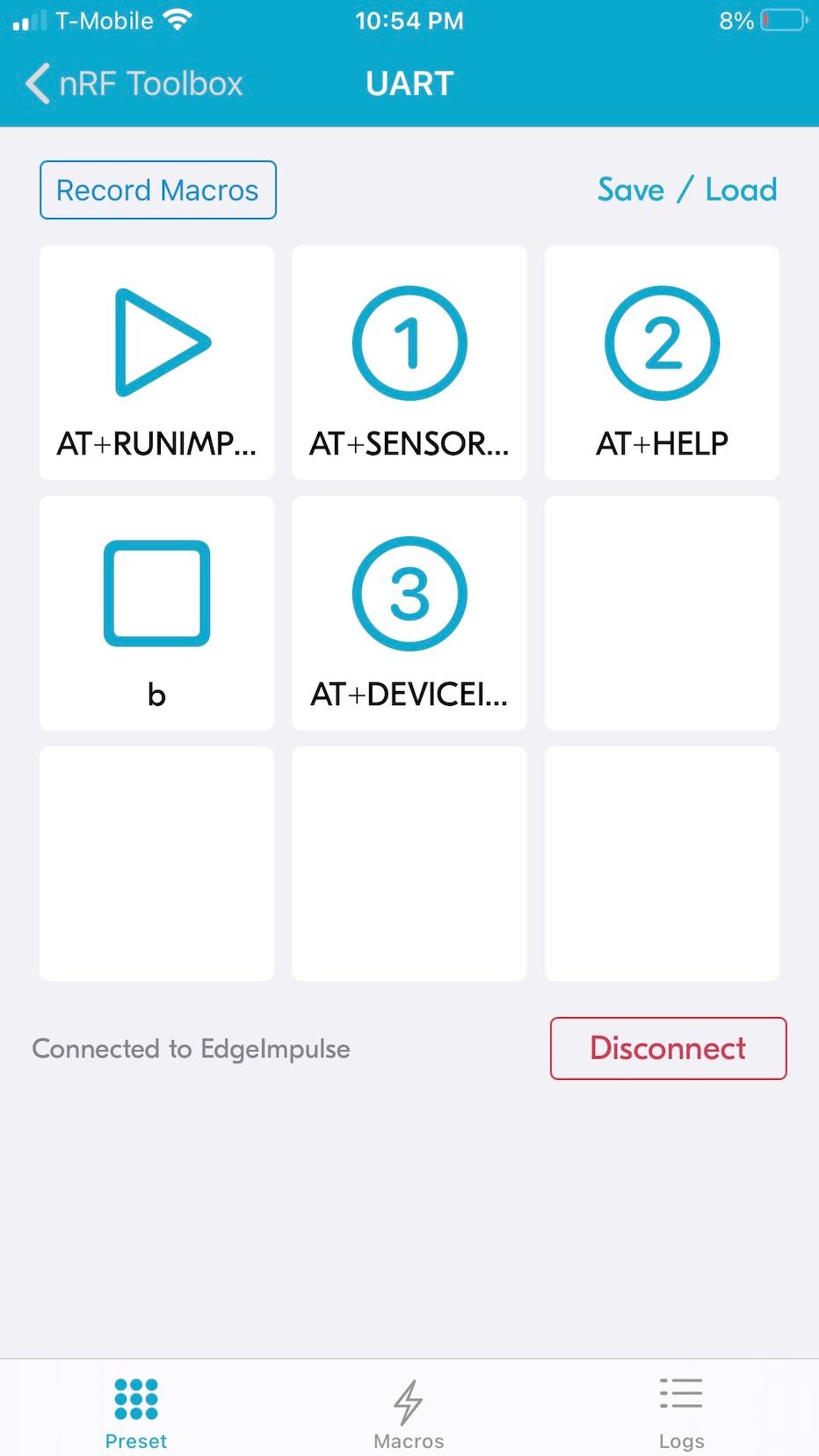

After following the instructions in the example’s readme, download the nRF Toolbox mobile application (available on both iOS and Android) and connect to the nRF52840 DK or the nRF5340 DK that will be discovered as “Edge Impulse”. Once connected, set up the interface as follows so that you can get information about the device, available sensors, and start/stop the inferencing process. Save the preset configuration so that you can load it again for future use. Fill out the text of the various commands to use the same convention as what is used for the Edge Impulse AT command set. For example, sending AT+RUNIMPULSE starts the inferencing process on the device.

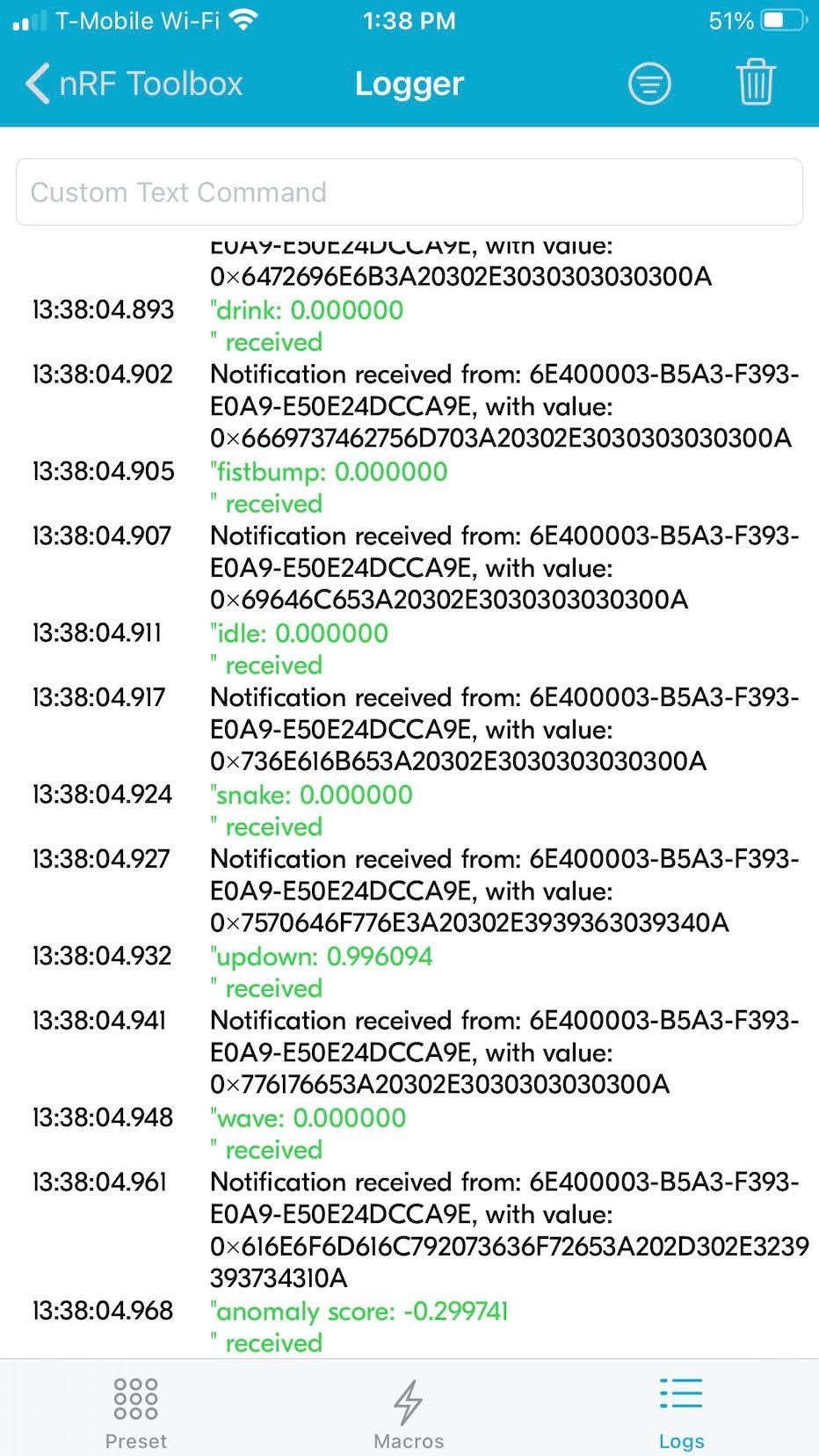

Once the appropriate AT command set mapping to an icon has been done, hit the appropriate icon. Hitting the ‘play’ button cause the device to start acquiring data and perform inference every couple of seconds. The results can be viewed in the “Logs” menu as shown below.
Read the Using nRF Cloud sectionUsing nRF Cloud

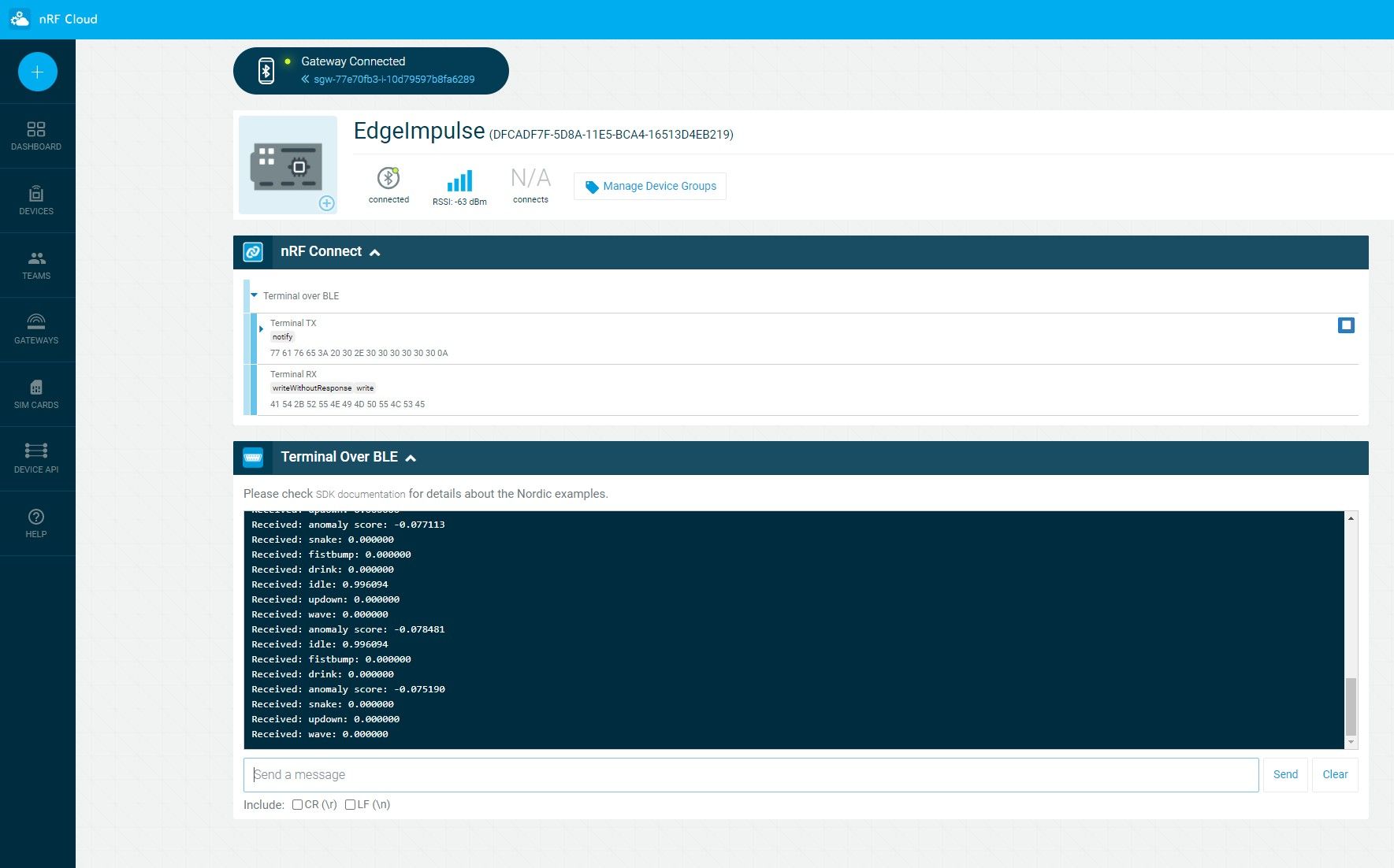

Using the nRF Connect for Cloud mobile app for iOS and Android, you can turn your smartphone into a BLE gateway. This allows users to easily connect their BLE NUS devices running Edge Impulse to the nRF Cloud as an easy way to send the inferencing conclusions to the cloud. It’s as easy as setting up the BLE gateway through the app, connecting to the “Edge Impulse” device and watching the same results being displayed in the “Terminal over BLE” window shown below!
Read the Summary sectionSummary
Edge Impulse is supercharging IoT with embedded machine learning and we’ve discussed a couple of ways you can easily send conclusions to either the smartphone or to the cloud by leveraging the Nordic UART Service. We look forward to seeing how you’ll leverage Edge Impulse, Nordic and BLE to create your next gen IoT application.
By Zin Thein Kyaw, Senior User Success Engineer at Edge Impulse
